Multi Stations Pressure Thermoforming Machine Blister Machine
Thermoforming
Main Features:
• High level of standardization.
• Exceptional repeatability.
• Rugged durability.
• Flexible production for a wide range of articles.
• Increased high-speed performances.
• 4-column press for forming and cutting with perfect balance of
the forces on mould platens.
• Cutting accuracy and reliability.
• Electric drives on all the main moving parts.
• User-friendly software to control each operation and working.
Specifications:
| Model: | HT 800-700 |
| Place of Origin: | Guangdong, China |
| Plastic Type: | Hips, PS, BOPS, PP, |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory |
| Applicable thickness | 0.15-2.0mm |
| Brand Name: | HUNDTECH |
| Forming diaphragm servo | 4.5 KW |
| Forming Length (mm): | 720 mm |
| Forming station servo motor: | 3.0kwX2 |
| Forming Width (mm): | 600 mm |
| Heating Power (kW): | 152 kW |
| After Warranty Service: | Spare parts |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Hole Punching: | 3 stations |
| Key Selling Points: | Automatic |
| Knife line width | 14m |
| Machine Size | 12 X 2.7 X 2.4 m |
| Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 |
| Max.Forming Height(mm): | 120 mm |
| Plug assist servo motor: | 3.0kw |
| Production Speed(Cycles/min): | Max25 |
| Punching and shearing diaphragm servo | 11 KW |
| Rated power | 198 KW |
| Servo feeding | 3 KW |
| Servo stretch | 4.5 KW |
| Sheet Thickness(mm): | 0.2-1.5 mm |
| Speed | 20-35 shot/min |
Product Application:
Multi Stations Pressure Thermoforming Machine Blister Machine
Thermoforming
is our lasted developed product, Sheet feeding and stretching part

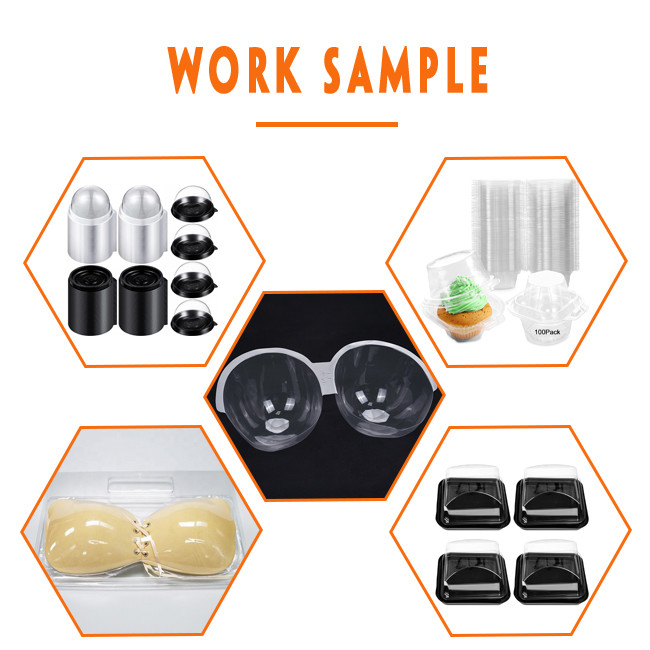

are driven by servo motor. Machine produces disposable products,
such as plastic cup, bowl, lid, and box through the workflow of
sheet feeding, sheet heating, forming, cutting and blowing, widely
used and suitable for most of the customer requested. PLC for
program, manual interface for operation, stable, low noise, and
high efficiency.
FAQ:
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80
countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products'
quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our
factory.During warranty period, except the artificial factor, the
spares are free to maintenance, beyond the warranty time, the buyer
needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine,
and teach your workers to use it. You pay all related costs,
including visa charge, double-way tickets, hotel, meals, and
technician salary.
