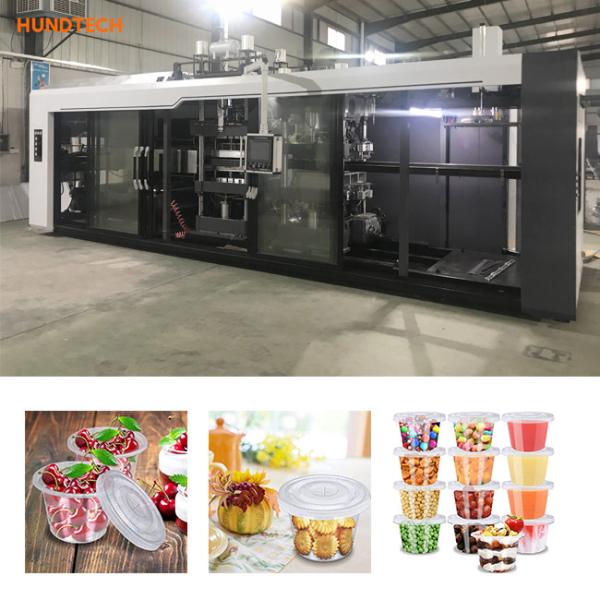

Ice Cream Plastic Bowl Making Machine Thermoforming Machine Blister
Outstanding Feature:
1. High speed, low noise, high reliability, and convenience to
maintenance.
2. Max. production speed up to 50 cycles/minute, definitely can be
named as high speed thermoforming machine.
3. High speed thermoforming machine can work perfectly for PP, PS,
BOPS, PE, PVC, APET, or CPET, due to the advanced automatic
servomotor control system.
4. Tool change system of optimized ergonomic design which shortens
the time for tool change extremely, together with steel rule
cutting station and stacking station, ensure the maximized
production time.
5. Advanced heating system with latest modules for temperature
control, for fast reaction time, resulting in high efficiency and
low production cost.
Specifications:
| Model | HT 800-700 | HT 720-600 |
| Applicable thickness | 0.15-2.0mm |
| Forming Depth | 120mm |
| Speed | 20-35 shot/min |
| Rated power | 198 KW | 120 KW |
| Servo stretch | 4.5 KW | 3 KW |
| Servo feeding | 3 KW | 3 KW |
| Forming diaphragm servo | 4.5 KW | 3 KW |
| Punching and shearing diaphragm servo | 11 KW | 7.5 KW |
| Stack servo | 3 KW | 2 KW |
| Knife line width | 14m | 10m |
| Total weight | 13 T | 11 T |
| Machine Size | 12 X 2.7 X 2.4 m | 12 X 2.7 X 2.3 m |
| Suitable Material | PP,PS,HIPS,PET,PVC,Bio degradation Starch Material |
| Hole Punching: | 3 stations |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Core Components: | PLC, Motor |
Application:
This Type of thermoforming machine suitable to high demand of food
packaging products:lid,fresh tray,moon cake tray,disposable food
tray and boxes,instant noodle bowl lid, the tea/coffee cup
lid,beverage cups,ice cream cups,jelly cups, boxes,household
plastic packaging containers,pharmaceutical/wine/electrical
appliances plastic blister packaging.
Features:
1. Fully servo driven machine.no noise,no vibration,forming good
and fast.
2. Furnaces automatic removal device.can be turned down at any time
during production without breaking the sheet,reaching without
wasting materials;
3. Electric furnace temperature control system uses intelligent
automatic compensation control,a control.a control of a
regulator,easy to adjust the temperature uniformity,easy to
use,simple,fast heating,low temperature three times up and down the
oven roast slices.
4. Forming,cutting die servo-driven,two-way adjustable for upper
and lower mold stroke;
5. Labor saving,only 1-2 workers packing.
