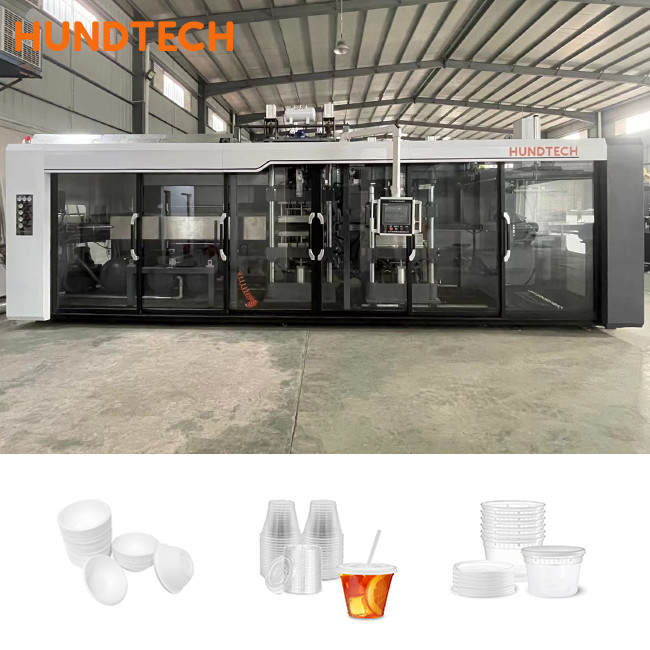

Food Containers Filling Machine Disposable Thermoforming Machine
Product Description:
* Machine function structure: Thermoforming station, cutting
station, stacking workstation.
* The main motor directly driving makes the mold table working more
stable, with lower mold cutting noise.
* Positive & Negative Pressure gas sources can complete the
production Positive & Negative Pressure forming.
* The heater is used the far infrared ray sets with buried
porcelain which has highly heating effect and safe.
* The machine is fit for producing PP, PE, PET, PS, HIPS, PLA
plastic products,like instant noodle bowl, fast food box and lunch
box, plate, egg tray, etc.
Specifications:
| Model: | HT 720-600 |
| Place of Origin: | Guangdong, China |
| Plastic Type: | Hips, PS, BOPS, PP, Bopp, PET |
| Plug assist servo motor: | 3.0kw |
| Processing Type: | Plastic Thermoforming Machine |
| Product Type: | plastic cup,lid,tray,bowl and plate etc. |
| Production Speed(Cycles/min): | Max25 |
| Punching and shearing diaphragm servo | 7.5 KW |
| Rated power | 120 KW |
| Servo feeding | 3 KW |
| After Warranty Service: | Spare parts |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Air Pressure(MPa): | 0.8MPa |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant,
Food & Beverage Shops |
| Applicable thickness | 0.15-2.0mm |
| Brand Name: | HUNDTECH |
| Certification: | CE |
| Condition: | New |
| Core Components: | PLC, Motor |
| Cutting station servo motor: | 7.5KwX2 |
| Forming Depth | 120mm |
| Forming diaphragm servo | 3 KW |
| Forming Length (mm): | 720 mm |
| Forming station servo motor: | 3.0kwX2 |
| Forming Width (mm): | 600 mm |
| Heating Power (kW): | 152 kW |
| Hole Punching: | 3 stations |
| Key Selling Points: | Automatic |
| Knife line width | 10m |
| Machine Size | 12 X 2.7 X 2.3 m |
| Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 |
| Servo feeding motor: | 3.0kw |
| Servo stretch | 3 KW |
| Sheet Thickness(mm): | 0.2-1.5 mm |
| Speed | 20-35 shot/min |
| Stack servo | 2 KW |
| Stacking station servo motor: | 2.0kw |
APPLICATION AREA:
Plastic cup thermoforming machine is our lasted developed product,
Sheet feeding and stretching part are driven by servo motor.
Machine produces disposable products, such as plastic cup, bowl,
lid, and box through the workflow of sheet feeding, sheet heating,
forming, cutting and blowing, widely used and suitable for most of
the customer requested. PLC for program, manual interface for
operation, stable, low noise, and high efficiency.
COMPANY PROFILE:
Hundtech is specialized in fully automatic multi-stations machinery
with development,production,sale and customer service.0ur company
structure is about 4000 square meters. We can customized the
production line according to customer request. Our machine are sold
well in China and overseas including
Malaysia,Thailand,Indonesia,ran,Saudi Arabic,Cambodia and so on.
